Ứng dụng

Cảm biến BRAUN dòng A5S0 có thể được sử dụng trong hệ thống giám sát:

• Turbine hơi/khí
• Máy phát điện
• Động cơ
• Máy nén
• Bơm
• Hệ thống giám sát tốc độ quay
• Hệ thống điều khiển và bảo vệ máy quay

LIST CODE

1. Item no.: A5S15-97002017

BRAUN Description:  Speed Sensor Ex ia acc. to MAN specification

2. Item no.: E1612-Rev1

BRAUN Description:  Spare Part (Valve Control Module) for

E16A358/E16A359 systems

3. Item no.: A5S13B90-06-Bi4F/04

Your part no.: PB0000279890

BRAUN Description:  Speed Sensor Ex nA Set composed of:

1piece(s)A5S13B90-06: Speed Sensor

1piece(s)Bi4F/04: Angular connector (metal housing)

4. Item no.: E1612-Rev1

BRAUN Spare Part (Valve Control Module) for E16A358/E16A359 systems

5. Item no.:  E1613-Rev1

BRAUN Spare Part (Valve Control Module) for E16A358/E16A359 systems

6. Item no.: E1668.221

BRAUN Spare Part (Speed Monitor) for E16x35y.221 systems

7. Item no.: E1698.32

BRAUN Spare Part (Testgenerator) for E16x356/E16A358/E16A359 systems

8. Item no.: A5S05WE90

BRAUN Speed Sensor acc. manual/data sheet A5S05E_WE,

thread M14x1,5 with nominal length 90mm,

with angular connector end (which incorporates STW9

and SD4K).

Note: mating connector BS4K is not included

Attention: only available as spare part, not for new application.

9. Item no.: E16-Parameter-Tool-Level2

BRAUN Set with

IS-RS232-E16-L2 (interface software on data stick)

L3D05 (adapter cable)

USB/RS232 (converter)

Note: Set is not necessary, if parameters are set by the

front side keys of the module

composed of:

1 piece(s) L3D05

1 piece(s) USB/RS232

1 piece(s) DS1

1 piece(s) Verschlussbeutel A6

10. Item no.: D224.11S2U1M

BRAUN Speed/Direction Monitor according description D224.1xS2

11. Item no.:  A5S3385792

BRAUN Speed/Direction Sensor according VOITH Specification

12. Item no.: E1612-Rev1

BRAUN Spare Part (Valve Control Module) for E16A358/E16A359 systems

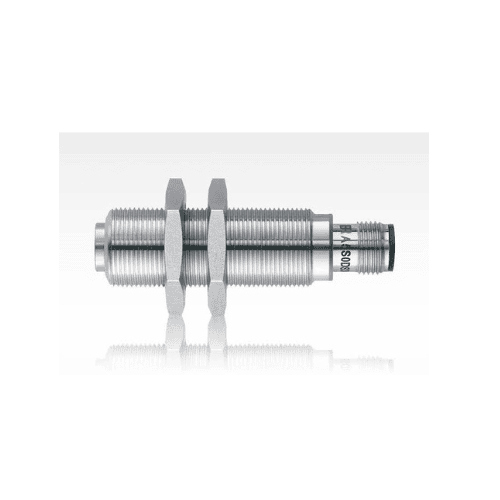

13. Item no.: A5S0DS0M1210T50-5m

BRAUN Speed Sensor acc. data sheet A5S0…, thread M12x1 with nominal length 50mm, firmly attached Teflon cable with 5m length

14. Item no.: A5S13B90-06

BRAUN Speed Sensor Ex ec, thread M14x1,5 with nominal

length 90mm, acc. SIEMENS specification

100% compatible successor model to A5S13B90-05

15. Item no.: A5S0DS3M1210T80-5m

BRAUN Speed/Direction Sensor (with one signal each) acc. data sheet A5S0…, thread M12x1 with nominal length 80mm, firmly attached Teflon cable with 5m length

16. Item no.: A5S31B90

BRAUN Sensor for Speed and Direction, with one signal each, acc. data sheet A5S0.., thread M14x1,5 with nominal length 90mm, plug-in connection (via connector type Bi4F/… or cable L4…) with threaded joint
