SR7-2-A-1-B-1-A-2 Level Switch Seojin Instech Viet Nam

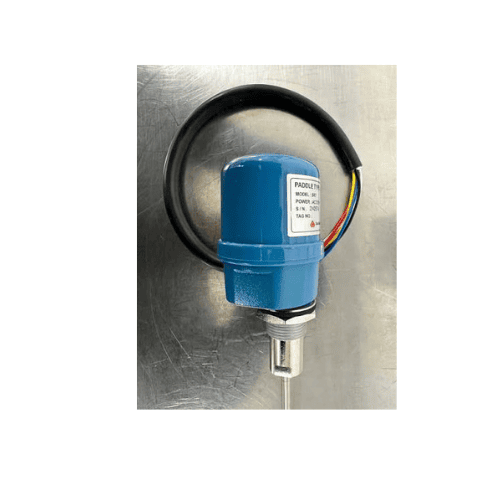

SR7-2-A-1-B-1-A-2 Level Switch – Seojin Instech, đây là công tắc mức dạng cánh xoay (Mini Paddle / Rotary Level Switch) của Seojin Instech, dùng chủ yếu để phát hiện mức vật liệu rắn dạng bột, hạt hoặc viên trong silo, hopper và phễu chứa.

Dòng SR7 được thiết kế cho các ứng dụng vật liệu nhẹ và hopper kích thước nhỏ.

Thông tin model SR7

Thông số	SR7-2-A-1-B-1-A-2
Loại thiết bị	Mini Paddle Type Level Switch
Nguyên lý	Cánh xoay cơ điện
Điện áp	220 VAC, 50/60 Hz
Kiểu trục	General type, khoảng 69 mm
Vật liệu bộ phận phát hiện	304 Stainless Steel
Nhiệt độ làm việc	-10 ~ +120°C
Chiều dài phần đo	Cross Paddle 69 mm / Flat Paddle 128 mm theo cấu hình dòng SR7
Kết nối lắp đặt	PF 3/4″

LIST CODE

Code: SLIC-4P-OP
Description:
Float Type Level Transmitter (Controller)
POWER: AC 110V/220V
INPUT : DC 4-20mA
OUTPUT : 4 SPST / DC 4-20mA Output
APPLICATION : Control, H/L Alarm

Code: ST-600-C-2-A-3-B-2
Description:
Float Type Level Transmitter
WET PARTS MATERIAL C : PVC Float
MOUNTING SIZE 2 : JIS 10K 100A FF Flange
OPERATING TEMPERATURE A : -20 ~ +60°C
MEASURING RANGE 3 : 0 ~ 3M
ENCLOSURE B : Weather Proof (ADC-12)
CONDUIT CONNECTION 2 : PT 3/4″

Code: ST-600-C-2-A-5-B-2
Description:
Float Type Level Transmitter
WET PARTS MATERIAL C : PVC Float
MOUNTING SIZE 2 : JIS 10K 100A FF Flange
OPERATING TEMPERATURE A : -20 ~ +60°C
MEASURING RANGE 5 : 0 ~ 5M
ENCLOSURE B : Weather Proof (ADC-12)
CONDUIT CONNECTION 2 : PT 3/4″

Code: ST-4S-D-1-A-1-B-1-B-1
Description:
REED FLOAT TYPE LEVEL SWITCH
NUMBER OF POINT 4S : 4 Point
NUMBER OF FLOAT D : 4 EA
TYPE OF WIRE CONNECTION 1 : Multi-Wire
WET PARTS MATERIAL A : 304SS
MEASURING LENGTH 1 : 0~1M
MOUNTING SIZE B : JIS 10K 100A 6t FF Flange
OPERATING TEMPERATURE 1 : -20 ~ +80°C
ENCLOSURE B : Weather Proof (ADC-12)
CONDUIT CONNECTION 1 : PF 3/4″

Code: SHQ-3-A-1-D-1-A-1
Description:
MICRO SWITCH TYPE QUICK FLOAT
NUMBER OF FLOAT 3 : 3 Point
OUTPUT A : Normal open A
TYPE OF WIRE 1 : Multi-Wire
MOUNTING SIZE D : PF 2″ABS with JIS 100A FF HDPE Flange
MEASURING CABLE LENGTH 1 : 0~5M
MATERIAL OF WEIGHT A : PVC (Ø60 x 110H)
CONDUIT CONNECTION 1 : PF 1/2″
* This model is generally dispatched in an unassembled state. However, upon request, we can assemble the set for your convenience for a slight surcharge.

Code: SQH-3-A-1-D-1-A-1
Description:
MICRO SWITCH TYPE QUICK FLOAT
NUMBER OF FLOAT 3 : 3 Point
OUTPUT A : Normal open A
TYPE OF WIRE 1 : Multi-Wire
MOUNTING SIZE D : PF 2″ABS with JIS 100A FF HDPE Flange
MEASURING CABLE LENGTH 1 : 0~5M
MATERIAL OF WEIGHT A : PVC (Ø60 x 110H)
CONDUIT CONNECTION 1 : PF 1/2″
* This model is generally dispatched in an unassembled state. However, upon request, we can assemble the set for your convenience for a slight surcharge.

Code: SR7-2-A-1-A-1-A-1
Description:
Paddle Type Level Switch

Code: SF-3-A-1-A
Description: Flow switch

Code: SCAP-1-B-1-OP-OP-A-6
Description: Capacitance type level switch

Code: SR7-2-A-1-A-1-A-1
Description:
Paddle Type Level Switch

Code: SQM-4-A-1-A-1-A-1
Description:
Quick Float Type Level Switch
*Note: non-assembled

Code: SMC-14-A-2-OP-2-F
Description:
DISPLACEMENT TYPE LEVEL SWITCH
NUMBER OF CONTACT FOR CONTROL 14 : 4 Point (HH/H/L/LL Alarm – DPDT)
OPERATING TEMPERATURE & PRESSURE A : -40 ~ +120°C & 10Kg/Cm2
WET PARTS MATERIAL 2 : 316LSS
MOUNTING SIZE OP : ANSI 150# 4″ FF 304SS
ENCLOSURE 2 : Weather Proof – Base ADC / Cover – AC2B
CONDUIT CONNECTION F : NPT 3/4″

*Note: The code for the conduit connection pertaining to the SMC model has been modified to code F so that it can align with our current ordering chart.

Code: ST-2S-B-1-C-1-A-1-B-1
Description:
REED FLOAT TYPE LEVEL SWITCH (PVC)
NUMBER OF POINT 2S : 2 Points
NUMBER OF FLOAT B : 2 EA
TYPE OF WIRE CONNECTION 1 : Multi-Wire
WET PARTS MATERIAL C : PVC
MEASURING LENGTH 1 : 0~1M
MOUNTING SIZE A : JIS 10K 80A FF Flange
OPERATING TEMPERATURE 1 : -20 ~ +60°C
ENCLOSURE B : Weather Proof (ADC-12)
CONDUIT CONNECTION 1 : PF 3/4″

Code: ST-600-A-1-A-3-A-2-C
Description: FLOAT TYPE LEVEL TRANSMITTER

Code: SGL-3-A-4-A-1-A
Description: Gear type liquid
Level Transmitter

Code: ST-600-A-5-A-1-D-2-C
Description: Float type Level Transmitter

Code: SDT-420-33-A-1-A-3-A-2-A-3-A
Description: Displacement Type Level Transmitter

Code: SMC-73-B-1-A-2-OP-1-A-1-D-1-A
Description: Vertical Float Type Level Switch
OP: ANSI 300# 1″ RF Carbon Steel

Code: SR7-2-A-1-B-1-A-2
Description: Mini Paddle Type Level Switch

Code: ST-600-C-2-A-2-B-1
Description: Float Type Level Transmitter

Code: ST-600-C-2-A-1-B-1
Description: Float Type Level Transmitter
