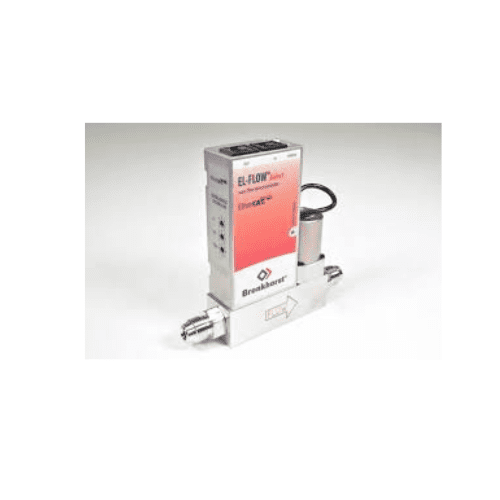

F-201CV-10K-AAD-GG-V Mass Flow Controller Bronkhorst Vietnam

F-201CV-10K-AAD-GG-V là một Mass Flow Controller (MFC – bộ điều khiển lưu lượng khối) của hãng
Bronkhorst (Hà Lan).

 Nguyên lý hoạt động (dễ hiểu)

• Bên trong có cảm biến đo lưu lượng khối (mass flow)
• So sánh với giá trị bạn cài đặt
• Tự động điều chỉnh van (control valve) để giữ đúng lưu lượng

 Đặc điểm nổi bật

• Độ chính xác cao (~±0.5% FS hoặc tốt hơn)
• Tích hợp van điều khiển (Control Valve – chữ “CV” trong model)
• Điều khiển bằng tín hiệu:
  • Analog: 0–5V / 4–20mA
  • Hoặc digital (tùy option)
• Phản hồi nhanh, ổn định
• Dùng tốt cho khí sạch (N₂, O₂, Air, Ar…)

LIST CODE

1 100% Taiwan Origin

MOXA Vietnam

NPort 5250A

2 port device server, 10/100M Ethernet, RS-232/422/485, DB9 male, 0.5KV serial surge, 12~48VDC, 0~60°C, w/ adapter

2 100% Taiwan Origin

MOXA Vietnam

NPort 5450

4-port device server, 10/100M ethernet, RS-232/422/485 DB9 male, RS-232/422/485 12~48 VDC, 0~55°C, w/o adapter

1 100% Netherland Origin

Bronkhorst Vietnam

Model: F-201CV-10K-AAD-GG-V

Mass Flow Controller

Product series : EL-FLOW Select

Ingress protection : IP-40

Material : Stainless steel 316

Multi Fluid Multi Range : Disabled

Control function : Flow control

Fluid : Air

Flow range : 18…900 ln/h

Accuracy : ±0.5% Rd plus ±0.1% FS

(At calibration conditions)

Calibration certificate : 3-point calibration (0%, 50%, 100%)

Inlet pressure (P1) : 7 bar (a)

Outlet pressure (P2) : 3 bar (a)

Valve function : Normally Closed

Orifice : 1.00 mm

Temperature : 20 °C

Seals : Viton 51415

Plunger : FFKM

Inlet connection : 8 mm OD compression

Outlet connection : 8 mm OD compression

Output signal : 0…5 Vdc (RS-232 0…100 %)

Setpoint : 0…5 Vdc (RS-232 0…100 %)

Tuychon

2 100% Netherland Origin

Bronkhorst Vietnam

Model: 7.03.004

cable Euro MFC loose

Connecting cable with loose-end

<3 grajhq 1 100% Korea Origin

SEOJIN INSTECH Vietnam – SEOJIN INSTECH Viet Nam – SEOJIN INSTECH-Vietnam – SEOJIN-INSTECH-Vietnam

Code:  ST-600-A-1-A-3-A-2-C

Description: FLOAT TYPE LEVEL TRANSMITTER

1 100% EU Origin

Baumer Vietnam

Code:  11263579

EN580C.ML-SC10.HH1PB.21160.A

Absolute encoder

<3 lucjhq 1 100% Italy Origin

Di-Soric Vietnam – Di-Soric-Vietnam – Di-Soric Viet Nam
Model: 210916 Fork light barrier sensing
OGU 061 G3-T3 Light Barrier Sensor

Fork light barrier sensing

replace 201297 OGU 061 P3K-TSSL – EOL Fork light barrier

1 100% Italy Origin

Di-Soric Vietnam – Di-SoricVietnam – DiSoricVietnam – Di-Soric Sensor Vietnam
Model: 210627 Fork light barrier sensing

OGU 041 G3-T3 Light Barrier Sensor

Fork light barrier sensing

replace 201262 OGU 040 P3K-TSSL – EOL

1 100% Singapore Origin

Allen Bradley/ Vietnam

Model:    1769-L30ERMS

Compact GuardLogix CPU, L30ERMS, 1M/0.5M

1 100% US Origin

Allen Bradley Vietnam

Model: 2711P-T15C22D9P

PanelView Plus 7 Graphic Terminal

Replacement model for 2711P-T15C4D8

1 100% Sweden Origin

CEJN Vietnam

Code: 10-925-6552

Auto hydraulic nipple / Auto-Hydraulik-Nippel

DN 6

1 100% Sweden Origin

CEJIN Vietnam

Model:  10 925 6552

Air Oil Connector, Plug Nipple

1 100% Netherlands/ Malaysia Origin

Victron Energy Vietnam

Code:  SHU050130050

Description: Smartshunt 300A/50MV

6.5 to 70V DC C/W 300A shunt

Range: 1 – 9999AH

(Monitor voltage, current, power, AH consumed & state of charge via Victron connect app)

2 100% Netherlands/ Malaysia Origin

Victron Energy Vietnam

Code:  BPP900450110

Description: Cerbo GX MK2

Victron system monitor

Access victron system via VRM 8 to 70 VDC

(GX touch 50 to order separately)

3 100% Netherlands/ Malaysia Origin

Victron Energy Vietnam

Code:  SCC110050210

Description: SMART SOLAR MPPT 100/50 VICTRON CHARGE CONTROLLER

MAX CHARGER CURRENT: 50A

MAX PV VOLTAGE: 100V

BATTERY VOLTAGE: 12/24V AUTO SELECT C/W BUILT-IN BLUETOOTH

4 100% Netherlands/ Malaysia Origin

Victron Energy Vietnam

Code:  BPR065022000

Description: Victron smart battery protect

Continous load: 65A

Voltage: 6 – 35V (12/24V)

Over voltage protection C/W bluetooth

5 100% Netherlands/ Malaysia Origin

Victron Energy Vietnam

Code:  BBA000100100

Description: Victron battery balancer

Equalizes the state of charge of 2 series connected 12V batteries

<3 jprob 1 100% Japan Origin – TOKYO-KEISO-Vietnam – TOKYO-KEISO Vietnam

TOKYO KEISO Vietnam – jpot1.5m – TOKYO KEISO Flowmeters Vietnam – TOKYO KEISO Variable Area Flowmeters Vietnam

Model: TOKYO KEISO AM71LW-04A5R-A Variable Area Flowmeters

TOKYO KEISO Variable Area Flowmeters

Specs:

Flow direction : Bottom to Top

Function of indicator : Local indication

Explosionproof : Dust tight, water immersion proof, nonexplosionproof

Wetted material : SUS316L

Meter size : 80A (3″)

Flange size (Connection size) : 4” ANSI CLASS 300 RF

Mountinng Length L: 500 mm

Process data:

Fluid : Water

Density / Viscosity: 1.0

Pressure : 0.39 Mpa

Temperature : 130°C

Nomal flow rate : 20 m3/h

Scale range : 3 – 30 m3/h
