Rơ-le bán dẫn 1 pha CD3000S 1PH CD Automation Việt Nam

Thông tin liên hệ:

Ms. Như

sales@qc-master.com

0373 238 670

BRAND: CD Automation,

Mô tả
Đánh giá (0)

Rơ-le bán dẫn 1 pha CD3000S 1PH CD Automation

Việt Nam

General description

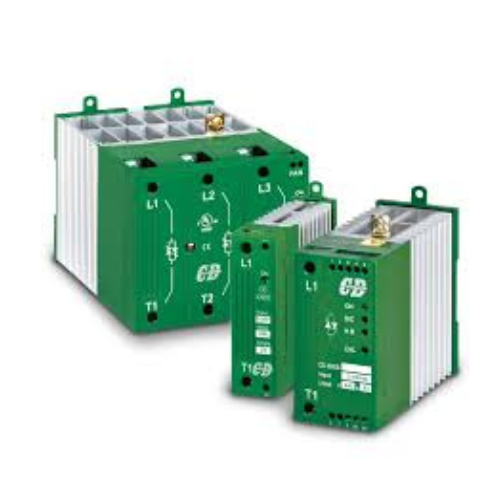

• CD3000S 1PH is a compact low cost family of solid state switches designd to replace contactors
• Single-phase thyristor units up to 90A.
• Applicable for resistive loads and infrared lamp.
• Zero crossing firing available with logic input signal (SSR)
• Constant current drain with SSR input
• Analog input 4÷20mA or 0÷10V with burst firing 4, 8 or 16 cycle at 50% power demand, is
available as an option from 35A to 90A
• Heater break alarm (HB) to diagnostic partial or total load failure and short circuit on thyristor, is
available as an option from 35A to 90A
• Side by side mounting
• Special design for heatsink with high dissipation
• IP20 protection
• Comply with EMC specification CE and cUL

LIST CODE

Model	Tên tiếng Việt	Tên Tiếng Anh
CD3000S family – Solid state relay		Dòng sản phẩm CD3000S – Rơ-le bán dẫn
CD3000S 1PH	Dòng sản phẩm CD3000S – Rơ-le bán dẫn 1 pha	CD3000S family – Solid state relay Single phase
CD3000S 2PH	Dòng sản phẩm CD3000S – Rơ-le bán dẫn 2 pha	CD3000S family – Solid state relay Two phases
CD3000S 2PH	Dòng sản phẩm CD3000S – Rơ-le bán dẫn 3 pha	CD3000S family – Solid state relay Three phases
REVO S Family: from 3.5A to 800A		Dòng sản phẩm REVO S: từ 3,5A đến 800A
REVO S 1PH	REVO S 1PH Rơ-le tĩnh một pha	REVO S 1PH Single phase static relay
REVO S 2PH	REVO S 2PH Rơ-le tĩnh hai pha	REVO S 2PH Two phases static relay
REVO S 3PH	REVO S 3PH Rơ-le tĩnh ba pha	REVO S 3PH Three phases static relay
REVO SSR	REVO SSR Rơ-le bán dẫn SSR tuổi thọ cao	REVO SSR Long Life Solid State Relay
REVO SSR ANALOG	REVO SSR ANALOG \| Đầu vào SSR 0:10V & 4:20mA	REVO SSR ANALOG \| 0:10V & 4:20mA Input SSR
REVO Sx 2x7A	REVO Sx \| Rơ-le bán dẫn đa kênh 2×7A	REVO Sx \| Multiple Solid State Relay 2x7A
REVO SX 3×4,5A	REVO SX \| Rơ-le bán dẫn đa kênh 3×4,5A	REVO SX \| Multiple Solid State Relay 3×4,5A
