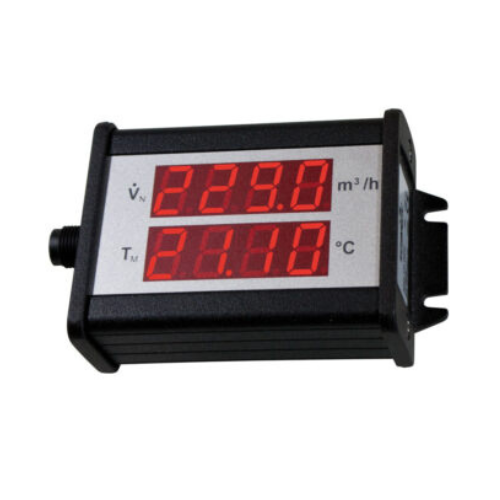

Measuring value module MD 10.020 SCHMIDT Technology GmbH

Mô-đun đo giá trị SCHMIDT® MD 10.020

Lưu lượng thể tích chuẩn và nhiệt độ trung bình trong nháy mắt!

Technical data
Display	2-line 7-segment-LED with 4 digits (red, height 14.2 mm, 1 or 2 decimal places)
Refresh rate	4 Hz
Interpretation of measured values
1st line	Standard volume flow V_N (0 … 99.99/999.9 Norm-m³/h)
2nd line	Medium temperature T_M (-99.9 … +999.9 °C)
Operating temperature
Operating temperature	-20 … +70 °C
Storage temperature	-25 … +80 °C
General data
Humidity	Measuring mode: Non-condensing (< 95 % RH)
Power supply & communication	Via module connector of SCHMIDT^® sensors
Current consumption	Typ. 16 mA (max. 22 mA)
Electrical connection	Plug-in connector M12 (A-coded), male, 5-pin Additional cable with 0.6 m length (content of delivery)
Maximum cable length	L < 30 m; wire ≥ 0,25 mm², unshielded
Mounting position	Arbitrary
Installation	Double-sided enclosure flanges
Protection type	IP65
Protection class	III (SELV) / PELV (EN 50178)
Dimensions (L x W x H)	90/106 mm x 62 mm x 33 mm
Weight	140 g
