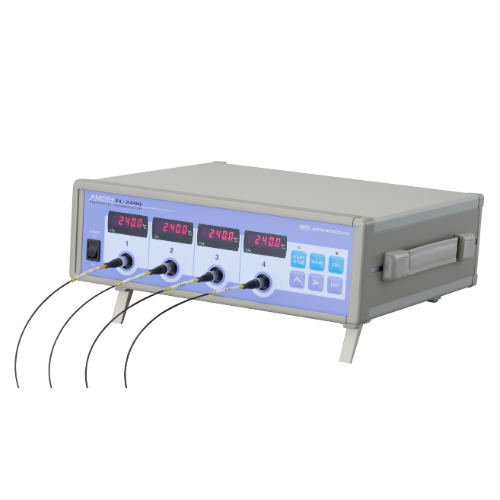

Fiber Optic Thermometer FL-2400 Anritsu Việt Nam

Model		FL-2400
Channel		4
Measurement Range		-195.0 to 450.0°C
Resolution		0.1°C
Accuracy	Calibration not executed	-195.0 to 399.9°C：±２°C　　400.0 to 450.0°C：±5°C
	Calibration executed	±0.5°C (within ±50°C of caribration point)
Temperature coefficient		±(0.01% of F.S./°C) Outside 25℃±5℃
Operating environment		Temperature : 0 ～ 40°C Humidity : 15 ～ 80%RH(non-condensing)
Storage environment		Temperature : -10 ～ 50°C Humidity : 10 ～ 85%RH(non-condensing)
Display		Height of character : 8mm RED
Display update		１sec
Light source		Blue LED
Power supply		Please specify a supply voltage when ordering (choose from 100VAC, 115VAV, or 230VAC)
Power consumption		approx. 40 VA
Memory capacity		No memory
Interface		RS-232C Transfer rate : 9600bps Data formation : 7bit, odd parity, 1 stop bit
Calibration		One-point calibration (using real temperature within a measured area)
Analog output	Output rate	10mV/°C
	Resolution	１ｍV
	Accuracy	±(0.2% of F.S) at an ambient temperature of 25°C±5°C
	Temperature coefficient	±(0.01％　of F.S./°C)
Dimensions		320(W)×99(H)×280(D) mm Protruded parts excluded
Weight		approx. 5kg
