0373 238 670ENC-GR1300LE-eco Apiste Việt Nam

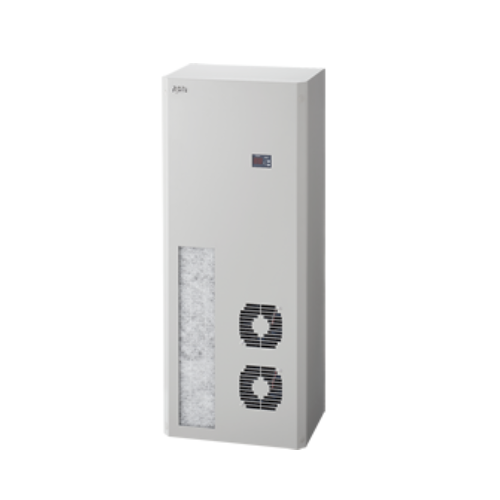

ENC-GR1300LE-eco
| Công suất làm lạnh (W)*1 | 1300 |
|---|---|
| Điện áp định mức (V) | Một pha 200 đến 240V AC |
| Kiểu lắp đặt | Lắp bên hông |
| Kích thước bên ngoài (mm) | Cao 1000×Rộng 400×Sâu 270 |
| Cân nặng (kg) | 38 |
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 1300 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H1000×W400×D270 |
| Weight(kg) | 38 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Current consumption *3 : Rating(A) *4 | 3.2／3.0 |
| Current consumption *3 : Max(A) *5 | 4.6／4.5 |
| Power consumption *3 : Rating(W) *4 | 500 |
| Power consumption *3 : Max(W) *5 | 745 |
| Recommended breaker capacity (A) | 10 |
| Vibration resistance | Equivalent to JIS Z0200 Level1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Certification | CE / UL / CCC |
| Refrigerant / Amount(g) | R1234yf 525g |
| Noise (dB(A)) | Approximately 73 |
LITS CODE
1 100% Korea Origin
Pora Vietnam
Model: PR-DPA-100L.A
EPC Controller
2 100% Korea Origin
Pora Vietnam
Model: PR-L16WA
Sensor without bracket
1 100% Japan Origin
Kofloc Vietnam
Model : 3660-1/4SWL-H2-20SLM-20 degrees
Standard Mass Flow Controller
1 100% Netherland Origin
Bronkhorst Vietnam
Model: F-201CV-10K-AGD-22-V
Mass Flow Controller
Product series : EL-FLOW Select
Ingress protection : IP-40
Material : Stainless steel 316
Multi Fluid Multi Range : Disabled
Control function : Flow control
Fluid : Air
Flow range : 18…900 ln/h
Accuracy : ±0.5% Rd plus ±0.1% FS
(At calibration conditions)
Calibration certificate : 3-point calibration (0%, 50%, 100%)
Inlet pressure (P1) : 7 bar (a)
Outlet pressure (P2) : 3 bar (a)
Valve function : Normally Closed
1 100% Canada Origin
GREYSTONE Vietnam
Model: PMRMCCXXM
Room Particulate Matter Transmitter, LCD Concealed, None, No Relay, Analog and Modbus
<3 janjhquk 1 100% UK Origin
PCI Instruments VietNam
Model: Tetropress 300
TP300A PRESSURE GAUGE 63MM 0/700 BAR/PSI DUAL
Case: 63mm, AISI304, bayonet bezel, IP65
Wetted: AISI316Ti/L, Window: Acrylic
Range: 0/700 bar, 0/10,000 psi, Class: 1.6%
Mounting A: Bottom, ¼” BSP
Note: PCI Instruments no longer offer 1000 bar, offer up to 700 bar only
FTS7: 1/4″ BSP F x 1/4″ NPT M ADAPTOR 316L
Description: Thread Connection Adaptor
Material: AISI316L
CC1: Certificate of Compliance 2.1
According to: BS EN 10204 – 2004
TuyChon
1.1 100% UK Origin
PCI Instruments VietNam
Test Certificate for Pressure Gauge (Over 160 to 2500 Bar)
Accuracy physically checked @ 5 points, with Oil @ ambient Traceable to National Standard BS EN 837-1, Valid 12 months
<3 rosjhqus 1 100% USA Origin
Del-tron Precision Vietnam
Code: RS3-9
Crossed Roller Slides
1 100% Germany Origin
CS-Instrument Vietnam
P/N: 05600511 0001
PI500 portable measuring instrument
with an integrated data logger
with power supply (0554 0009)
TuyChon
1.1 100% Germany Origin
CS-Instrument Vietnam
P/N: 05548040
CS Basic- data evaluation in graphic and table form – reading out of the measured data via USB stick or Ethernet.
