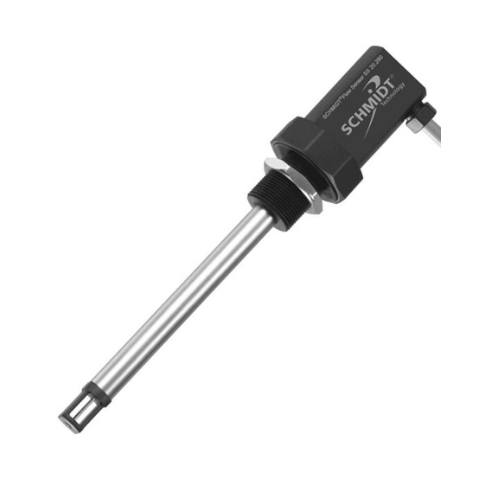

Cảm biến lưu lượng SS 20.260 SCHMIDT Technology GmbH

Order information

	Description	Article-Number
Basic sensor without temperature output	SCHMIDT^® Flow Sensor SS 20.260; 1 x output signal 4 … 20 mA or 0 … 10 V; cable length 2 m	506 690-1	X	Y	Z	K	A
	Options
Mechanical type	Probe length 50 mm		1
	Probe length 100 mm		2
	Probe length 200 mm		3
	Probe length 350 mm		4
	Probe length 500 mm		5
Measuring range, adjustment accuracy and calibration	Measuring range 0 … 1 m/s			1
	Measuring range 0 … 10 m/s			2
	Measuring range 0 … 20 m/s			3
	Measuring range 0 … 40 m/s			4
	Standard adjustment				1
	Standard adjustment with factory calibration certificate				3
	High precision adjustment flow with factory calibration certificate				2
Output signals	0 … 10 V					1
Output signals	4 … 20 mA					2
Connecting cable	Cable length 2 m						1
Connecting cable	Special length: 3 … 100 m; 1 m steps						9
