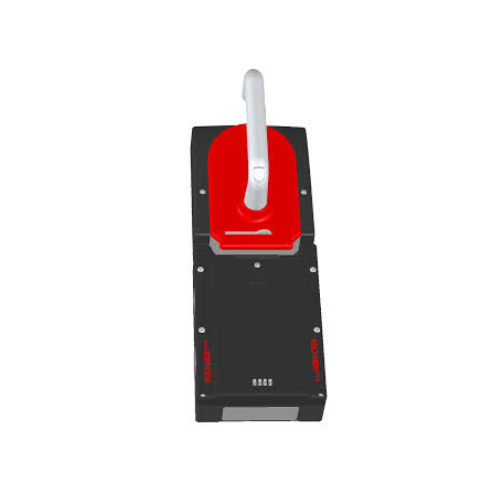

0373 238 670Bộ khóa MGB-L1H-ARA-R-105782 Euchner Việt Nam
MGB-L1H-ARA-R-105782 (Số đơn đặt hàng 105782)
Bộ khóa MGB-L1H-ARA… (khóa bảo vệ bằng lực lò xo) không có bộ điều khiển hoặc chỉ báo.
- Hệ thống khóa an ninh kèm giám sát khóa an ninh
- Có thể kết nối nối tiếp với các thiết bị AR khác (ví dụ: CES-AR và CET-AR)
- Có cổng cáp
- Unicode
Handle modules MGB-H-AA1A1-R-100464 (Order no. 100464)
Mechanical values and environment
| Installation orientation | Door hinge DIN right |
| Storage temperature | -25 … 70 °C |
| Degree of protection | IP65 |
| Ambient temperature | -20 … 55 °C |
| Material | |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
Miscellaneous
| Product version number | V3.0.0 |
Locking modules MGB-L1-ARA-AA1A1-M-104302 (Order no. 104302)
Operating and display elements
| Occupancy diagram | L0 |
Electrical connection values
| Connection cross section | |
| (rigid/flexible) with cable end sleeve according to DIN 46 228/1 | 0.25 … 1.5 mm² |
| (rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 | 0.25 … 0.75 mm² |
| (rigid/flexible) | 0.13 … 1.5 mm² |
| Rated insulation voltage Ui | 30 V |
| Rated impulse voltage Uimp | 1.5 kV |
| Discrepancy time | |
| between FO1A and FO1B | max. 10 ms |
| Utilization category | |
| DC-13 | 24V 200mA |
| Risk time according to EN 60947-5-3 | max. 350 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 5 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Solenoid control input IMP1, IMP2, IMM | |
| Test pulse duration | max. 5 ms |
| Test pulse interval | min. 100 ms |
| Monitoring outputs OD, OT, OL, OI | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V … UA V DC |
| Output current | max. 50 mA |
| Safety outputs FO1A, FO1B | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
LIST CODE
1 100% EU/China Origin
IFM Vietnam
Model: PN7092
Pressure sensor with display
recheck STOCK khi order
1 100% EU Origin
IFM Vietnam
EVF556
VSTAN040VAS0001P04STGP040–S
Ethernet connection cable
1 100% Germany Origin
Euchner Vietnam
Article: ZSE2-4C1801
Order no.: 091098
ENABLING SWITCH
2 100% Germany Origin
Euchner Vietnam
Article: RIEGEL CET-A-C
Order no.: 104309
BOLT
3 100% Germany Origin
Euchner Vietnam
Article: CET-A-BWK-50X
Order no.: 096327
ACTUATOR
4 100% Germany Origin
Euchner Vietnam
Article: AM-C-124979
Order no.: 124979
CET COVER 2X FIXING
5 100% Germany Origin
Euchner Vietnam
Article: CET3-AR-CRA-AH-50X-SG-C2333-114512
Order no.: 114512
SAFETY SWITCH
Update Feb-09
6 100% Germany Origin
Euchner Vietnam
Article: MGB-L1H-ARA-R-105782
Order no.: 105782
MULTIFUNCTIONAL GATE BOX COMPLETE
1 100% UK Origin
E2S Vietnam
Model: STEXS2FDC024AS1T1R
Description: STExS2F 11.5-54Vdc Alarm Sounder
A: Entries: 4 x M20
S: Stopping plug/adaptor: Stainless Steel
1: Bracket/Guard in (A4) 316 St/St
T: Product version: Telephone/Relay Initiate IECEx, ATEX
1: Product option: Standard
R: Enclosure colour: Red
1 100% Japan/China Origin
SMC Vietnam
Model: EVS7-8-FG-S-3CVO-Q
Solenoid Valve
2 100% Japan/China Origin
SMC Vietnam
Model: AW20-F02CE-2-D
Filter Regulator
1 100% Poland/UK Origin
Eurotherm/Watlow Vietnam
Code: 3208/CP/VH/DRDX/R/RCL/S/ENG/ENG/XXXXX/XXXXX/XXXXX/XXXXXX/
X/X/X/X/X/X/X/X/X/X
MODEL (3208) Controller
UNIT TYPE (CP) 1 x 8 seg programmer
SUPPLY VOLTAGE (VH) 85 – 264 Vac
OUTPUT OPTIONS 1 2 3 (DRDX) 0-20mA/Relay/0-20mA
AA RELAY OP4 (R) Relay
OPTION BOARD RCL – Remote Setpoint + Logic IP
FASCIA COLOUR (S) Silver
PRODUCT LANGUAGE (ENG) English
MANUAL LANGUAGE (ENG) English
