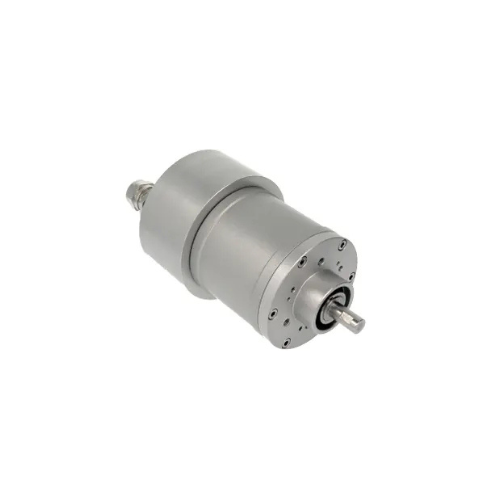

UCE-IPH00-XXXXX-F10S-HFZ Encoder Posital

Viet Nam

Posital – FRABA là hãng nổi tiếng chuyên về cảm biến vị trí và chuyển động. Model UCE-IPH00-XXXXX-F10S-HFZ thuộc dòng IXARC Incremental Rotary Encoder với các đặc điểm

Interface

Interface	Programmable Incremental
Programming Functions	PPR (1-16384), Output, Counting Direction
Programmable Output	Push-Pull (HTL) or RS422 (TTL)
Configuration Tool	UBIFAST Configuration Tool (Version ≥ 1.6.3)

Outputs

Output Driver	Push-Pull (HTL)
Output Voltage High Level Push-Pull (HTL)	> 4 V @ 4.75-9 V Supply Voltage > V-3 V @ 9-30 V Supply Voltage
Output Voltage High Level RS422 (TTL)	> 4 V
Output Voltage Low Level RS422 (TTL)	< 0.5 V
Output Voltage Low Level Push-Pull (HTL)	< 0.5 V
Maximum Frequency Response	1 MHz
Maximum Switching Current	50 mA per Channel

Mechanical Data

Connection Cap Material	Stainless Steel V4A (1.4404; 316 L)
Housing Material	Stainless Steel V4A (1.4404, 316 L)
Housing Coating	No Coating
Flange Type	Clamp, ø 78 mm, ATEX
Flange Material	Stainless steel V4A (1.4404, 316 L)
Shaft Type	Solid, Single Flat, Length = 20 mm
Shaft Diameter	ø 10 mm (0.39″)
Max. Shaft Load	Axial 60 N, Radial 80 N
Rotor Inertia	≤ 35 gcm² [≤ 0.2 oz-in²]
Friction Torque	≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F)
Max. Permissible Mechanical Speed	≤ 3000 1/min
Shock Resistance	≤ 100 g (half sine 11 ms, EN 60068-2-27)
Vibration Resistance	≤ 10 g (10 Hz – 2000 Hz, EN 60068-2-6)
Length	150 mm (5.91″)
Weight	2820 g (6.22 lb)
