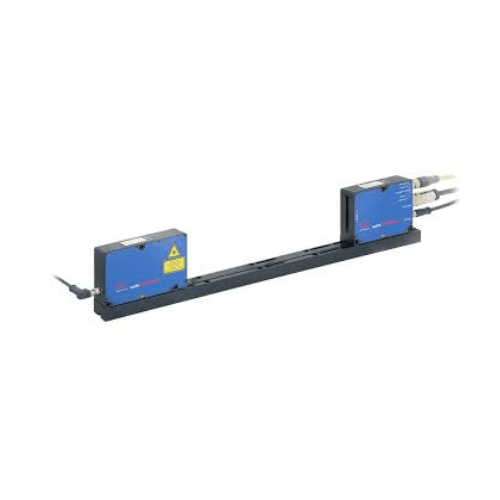

ODC2520-46 Laser micrometer MICRO-EPSILON Việt Nam

Thông số chính (model 2520-46)

Dải đo: 46 mm
Độ phân giải: tới 1 µm (0.001 mm)
Độ tuyến tính: ~12 µm
Khoảng cách đầu phát – thu: tối đa ~2 m
Laser class: 1M (an toàn công nghiệp)

Tính năng nổi bật

Đo được nhiều giá trị cùng lúc (đa điểm)
Tích hợp controller → không cần bộ xử lý rời
Cấu hình qua web interface (dễ setup)
Hỗ trợ nhiều giao thức:
- Ethernet / EtherCAT / RS422
- Analog output / PROFINET / EtherNet/IP

Ứng dụng thực tế

Đo đường kính dây, ống, sợi
Kiểm tra sản phẩm nhựa, cao su
Đo khe hở trong cơ khí chính xác
QC trong dây chuyền tự động

LIST CODE

1	100% USA Origin	Temposonics/MTS Vietnam	Code: RPM0550MD531P102 Temposonics® R-Series
2	100% USA Origin	Temposonics/MTS Vietnam	Code: RH5MA1250M01P021S1011G6 Temposonics® R-Series Note: RHM1250MP021S1G6100 is no longer
3	100% USA Origin	Temposonics/MTS Vietnam	Code: RH5MA0450M01P021S1011G6 Temposonics® R-Series Note: RHM0450MP021S1G6100 is no longer
4	100% USA Origin	Temposonics/MTS Vietnam	Code: RH5MA0400M01P021S1011G6 Temposonics® R-Series Note: RHM0400MP021S1G6100 is no longer
5	100% USA Origin	Temposonics/MTS Vietnam	Code: RH5MA0300M01D701S1011G1 Temposonics® R-Series
1	100% Germany Origin	MICRO-EPSILON VietNam	Model: ODC2520-46 Laser micrometer optoCONTROL 2520-46 laser based measurement system according to shadow principle light source and receiver in aluminum housing IP64 light source: HL laser 670nm (laser class 1M) measurement range: 46mm measurement frequency: 2.5 kHz analog output: 0 … 10 V interfaces: RS422, Ethernet / EtherCAT configuration and data capturing via web browser supply voltage: 11 V … 30 V DC accessory: mounting rail, accessory package including screws, CD
1	100% Germany Origin	Systech Vietnam	Code: FL,CF,DN600,OHU,AAN,MC,SE,X100,PN40 deltaflow pitot tube DF25 TAG-no: DN600 line size fluid FL – liquid process connection CF – stud with DIN-flange acc. to DIN EN 1092-1 (flange pipe, gaskets, screws are included in the delivery) nominal diameter DN600 / 24” exact inner diameter 590mm exact wall thickness 10mm pipe orientation OHU – horizontal pipe, installation from below (only liquid) dp-connection AAN – welding ends (21,3 x 3.2mm) mounting material MC – carbon steel (P235GH) probe material SE – 1.4571 (SS316Ti) up to 550°C insulation X100 – up to 100 mm pressure range PN40 fluid unknown operational pressure unknown operational temperature unknown process density unknown flow rate unknown fluid velocity unknown differential pressure unknown TAG-no. unknown notes Note: in case of an order we need to know the missing information out of the fieds mentioned with “unknown”
2	100% Germany Origin	Systech Vietnam	Code: FD,CF,DN200,OX,AAN,MC,SE,X100,PN40 TAG-no: DN200 line size deltaflow pitot tube DF25 fluid FD – steam process connection CF – stud with DIN-flange acc. to DIN EN 1092-1 (flange pipe, gaskets, screws are included in the delivery) nominal diameter DN200 / 8” exact inner diameter unknown exact wall thickness unknown pipe orientation OX – please specify dp-connection AAN – welding ends (21,3 x 3.2mm) mounting material MC – carbon steel (P235GH) probe material SE – 1.4571 (SS316Ti) up to 550°C insulation X100 – up to 100 mm pressure range PN40 temp. transducer setting – fluid unknown operational pressure unknown operational temperature unknown process density unknown flow rate unknown fluid velocity unknown differential pressure unknown TAG-no. unknown notes Note: in case of an order we need to know the missing information out of the fieds mentioned with “unknown”
